Multifunction controller boasts Ethernet connectivity for simplified operation
12 September 2018
The Type 8619 multiCELL controller from Burkert is a popular choice for delivering multi-channel measurement and control for a range of sensors.
Now the benefits for process control systems have been extended with the addition of Ethernet connectivity, which will reduce installation time and greatly improve the connectivity of the control network.
With direct connection of a wide range of sensors to measure parameters such as flow rate, pH, ORP, temperature and conductivity, the multiCELL is ideally suited to the control and monitoring of water quality in industrial processes. Designed to provide flexibility and an easy-to-use interface, the multiCELL can be easily configured to suit a wide range of process control systems.
As more control systems start to integrate Ethernet communications, so Burkert is adding this important communication tool to many of its products. The continued implementation of this technology is making it considerably easier to install and operate process control infrastructure.
The initial product release by Burkert will enable communication using Modbus TCP and this will be shortly followed by the introduction of PROFINET and Ethernet/IP capability. This will greatly simplify the connection between the multiCELL and the PLC as well as removing the need for an additional I/O card in the PLC.
Built-in flexibility
Each controller can be configured for a range of sensors as well as having up to six pre-configured I/O boards to accommodate any signal requirements. In addition, the multiCELL can be configured as a datalogger, using the built-in SD card slot for data storage. This SD card slot can also be used to save sensor parameters and control application settings to allow the same settings to be replicated in another multiCELL controller; ensuring accurate transfer of control parameters between sites.
Sophisticated electronics and state-of-the-art control algorithms ensure that optimum process control is maintained at all times with minimal operator intervention. Chemical dosing pumps or control valves can be controlled via pulse, on/off or analogue signals, depending on the application in question. The adaptability and versatility of the multiCELL allows it to be integrated into a variety of applications, from the very simplistic to the more complex designs.

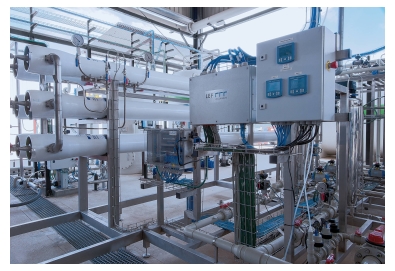

Monitoring and maintaining water quality within an industrial process requires an array of sensors, flowmeters, pumps and control valves. By introducing the highly functional multiCELL, all of these components can be easily configured with parameters being set at the touch of a button.
In many cases, maintaining precise control over the quality of water within a process is a fundamental requirement. At the same time, improved communication and flexibility can go a long way to reducing down-time and maintenance costs.
