Drones could connect smart sensors to the IoT

13 December 2019

Drones could be the key to connecting large numbers of smart objects to create the Internet of Things (IoT). KAUST researchers have shown that using drones, also known as unmanned aerial vehicles (UAVs), to fly between clusters of IoT objects to collect their data could be highly efficient.

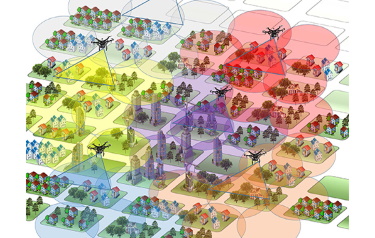

© 2019 Osama Bushnaq
© 2019 Osama Bushnaq

“IoT networks will revolutionise the way we monitor, control and communicate with everything around us,” says Osama Bushnaq, a Ph.D. student in Tareq Al Naffouri’s lab. Crop fields could be filled with sensors that monitor water and nutrient levels. Networks of sensors that detect wildlife could also be deployed.

“To enable IoT networks, a huge number of low-cost, self-powered sensors are needed,” Bushnaq says. Traditional wireless data transfer is unsuitable for this purpose due to the limited power supply of each sensor and the complexity of connecting so many devices.

Sending UAVs to gather data via low-power, short-range transmission could be an alternative, transferring the burden of data aggregation from each individual sensor to a single machine that can autonomously return to base for recharging. The challenge comes in calculating the most efficient approach to data collection in order to minimise mission time and maximise productivity.

Imagine a field randomly covered with IoT sensors, Bushnaq says. “Covering a small area of the field at each hovering location improves communication between the UAV and the devices, reducing data aggregation time,” he explains. However, the UAV needs to spend more time traveling between all the IoT devices in the field. Minimising the total mission time involves optimising UAV coverage area, the number and location of hovering locations, and the UAV’s path between each location.

The team split the problem into components. For a given number of hovering locations, the team first calculated where the optimal hovering locations would be. They then applied the classic Traveling Salesman computer science problem to identify the best route between locations and optimised the data transmission rate. “The process is repeated for different numbers of hovering locations until an optimal trade-off between hovering and travelling times is obtained,” Bushnaq says. The approach cut the mission time by up to 10 times for a field of 100 square metres.

The team is currently testing the idea of using UAVs with IoT sensors for fire detection. “We are studying how such a system can be used for forest fire detection and the trade-off between system cost and fire detection reliability,” Al Naffouri says.
