M12 connectors: A perfect fit for the IIoT
17 July 2020
It is generally recognised that, by the end of this year, more than 20 billion devices will be connected to the Industrial Internet of Things (IIoT) and it will be a market worth $200 billion by 2021. In basic terms, the IIoT is real-time data connection, driven by processing and transmitting data at faster speeds, on progressively smarter and smaller machines.
The true value of the IIoT, however, goes beyond data collection and transmission. It embraces the complete visibility and control of virtually all electromechanical factors in the manufacturing process, allowing companies to move beyond descriptive and diagnostic analysis to predictive intelligence and preventive action. Quantifiable benefits include the ability to identify disruptions, such as product or process variance and circumvent or redesign to avoid these issues. Plant operators can discover unused capacity, reduce maintenance costs and downtime, improve safety, and maximise overall equipment effectiveness (OEE).
A comprehensive view of a manufacturing process or assembly line is accomplished by placing networked sensors on physical equipment to collect data. These sensors perform condition monitoring, analysing constant input like temperature, vibration, or sound frequencies. This data is transmitted back to a central location or cloud where decision makers can access it. This process requires reliable high-speed connections, often in environments that include dust, noise, temperature changes, and vibration; in industries such as food and beverage, there is the additional challenge of frequent washdowns.
Connectors are the vital link
Connectors act as the vital link between the cables carrying data and the devices that record and communicate information. The demand for faster data transmissions that can accommodate visuals has driven the development of connectors able to support the gigabit data requirements for the latest sensors. To add to the complexity, machines are getting smaller, putting pressure on component makers to deliver greater speed, power, and capacity in an ever-shrinking footprint.
M12 connectors are the perfect fit
Introduced in 1985, the M12 connector has built a record as one of the most reliable connectors for industrial applications. Originally used primarily by car manufacturers, the M12 has become the industry standard in factory automation, autonomous robotics, communication, measurement and control, and many other applications.
On the plant floor or in the field, personnel need to be able to disconnect existing connectors for maintenance and install new connectors on newly laid cables quickly, especially where connections must remain dust- or water-tight. M12 connectors are easily installable and clearly coded to reduce the chance of accidental mis-mating.
M12 coding for signal and data transmission:
• A-coded for sensors, DC power
• B-coded for PROFIBUS
• D-coded for 100Mbit Ethernet and Profinet
• X-coded for 10Gbit Ethernet
M12 coding for power supplies:
• S-Coded and K-Coded connectors are designed for AC power supplies up to 630V/16 A. Ideal power connector for applications including: AC motor and drives, motor control switches, and frequency inverters.
• T-Coded and L-Coded connectors are designed for DC power supplies up to 63V DC/16A. Ideal power connector for low-voltage applications including: DC motor and drives, fieldbus Ethernet components, network devices, and LED lighting fixtures.
• 12 connectors are available with 3, 4, 5, 8, or 12 pins. The ideal pin count depends on the application. For example, most sensors and power applications use 3 or 4 pins, where Profinet and Ethernet use 4 and 8 pins.
Locking systems
There are three basic types of locking systems on an M12 connector:
1. Push-pull: Locks easily and securely with an audible click indicating that the proper connection has been established.
2. Threaded coupling: A threaded nut on the plug is mated with a corresponding set of threads on the receptacle.
3. Bayonet: An interconnect mating design that uses pins on the receptacle and ramps on the plug for quick-connect and disconnect coupling.
Options make for versatility
The connector choice for a specific application can be further customised by selecting options such as those below.
EMI shielding
• Gender: male, female, male/female
• Termination style: crimp, screw, clamp, or IDT (Insulation Displacement Termination)
• Housing material: plastic, metal, or stainless steel • Contact plating material: Au (gold), Sn (tin), CuSnZn (optalloy)
• Degree of protection: IP67, IP68, or IP69K
• Cable length
• Cable jacket: PUR or PVC
• Panel mounted or field attachable
• Rated voltage
• Rated current
Three key reasons M12 connectors are the smart choice for Industry 4.0
Though M12 connectors were available decades before the IIoT was even a concept, they have become the preferred connector for today's industrial Ethernet. For data transmission, they are used on the device side – pulling data from devices and transmitting it to the application where data is aggregated to provide useful information to the user. They are also used to transmit high levels of power supplies for extended time periods in applications including AC motors and drives, motor control switches, and low-voltage applications like fieldbus Ethernet components and network devices.
Unrivalled ruggedness: Compared to the RJ45, the other most commonly used data connector, M12 connectors offer superior performance in harsh conditions due to:
• Circular design that shields contacts from contaminants such as dust, moisture, and foreign objects, while also protecting against impact, vibration, UV exposure, and temperature changes
• Minimum IP67-rated ingress protection against dust and water
• Additional options with IP68 and IP69K ratings for demanding washdown environments
Mating cycle ratings are another important consideration for machine builders. Ratings are determined by the material used for contacts and plating, as well as the thickness of the plating. Cheaper connectors, made with tin plating and copper alloy contacts, will not perform as well as those made with corrosion-resistant materials such as thick gold plating and beryllium copper contacts, which are typically rated for >100 mating cycles.

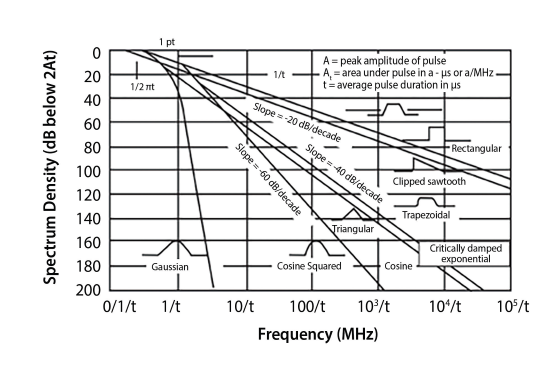

EMI shielding: Hard-wired connections offer some advantages over wireless connections, including the intrinsic security of physical connections and the avoidance wireless interference. This is especially important because the new IIoT enabled factory is often filled with electromagnetic interference (EMI), also called radio frequency interference (RFI). Unseen and unheard by people, this electronic noise pollution frequently interferes with high-precision sensors already taxed by the physical noise and vibrations of a busy factory floor.
The increasing pervasiveness of EMI places an additional burden on manufacturers to design equipment that both generates as little EMI as possible and ensures that their equipment has reasonable resistance against EMI so that operation isn’t affected where it is a factor.
In order to satisfy these requirements, manufacturers need connectors and connecting cables with sufficient shielding properties. Good shielding is achieved when the following conditions are met:
• Cable shield is terminated to conductive (metal) housings • Cable shield is carefully secured to the connector to provide 360° shielding
• Mated connector pair has a secure galvanic connection between the plug and receptacle housing
• Panel-mounted receptacle has a good galvanic connection between the metal receptacle housing and the metal panel surface.
Compact size: The Industry 4.0 trend towards miniaturisation requires more compact components and connectivity solutions, even as power and data transmission needs grow. Increasingly smaller devices and sensors are transmitting more data, which requires more connection points, which means that connectors have to deliver the same (or more) power density in a smaller footprint.
Originally designed to reduce the size of the 7/8” connector, which was standard at the time for sensors, the M12 connector has an outside diameter locking thread of just 12mm. Its small footprint makes it well suited for applications with little free space, such as automation control systems, telemetry modules, compact LED lighting fixtures, and value actuators.
M12 technology continues to evolve. Machine designers and OEMs are incorporating M12 connectors into new machines, as well as updating existing infrastructure. With backwards compatibility, replacing older and less robust technology like RJ45 connectors is relatively simple and cost effective. Manufacturers of M12 connectors continue to innovate, adding new features to meet the quickly changing needs of the robotics, automation, food and beverage, alternative energy, and cellular communication industries. Positionable, lockable, field wireable connectors, capable of transmitting impressive amounts of data and power, ensure that the M12 will continue to be an essential component of Industry 4.0 and beyond.
