Kodiak Robotics ushers in a new era of autonomous long-haul transportation
16 January 2023
Commercial trucking is the backbone of the US economy. That has never been more evident than in the past few years, as Covid-19-related supply chain disruptions gripped the country. At the same time, it’s becoming harder and harder to find people who want to drive trucks.
The average American truck driver is about 48 years old and for long-haul truckers, the average age is even higher, which may help explain why there was a shortage of 80,000 drivers in the US last year, according to the American Trucking Association.
Many industry analysts believe long haul commercial trucking is likely to be the first major use case of autonomous vehicle technology, as highway driving is a less complicated problem to solve, compared to the many nuances of negotiating secondary roads and city streets.
Additionally, from an economic standpoint, the trucking industry can benefit more from vehicle autonomy. The cost of an autonomous driving system is more easily amortised in a truck that operates for between one million and two million miles.
Plus, the average human-driven truck is only used for 7.5 hours a day, due to hours-of-service limitations. An autonomous truck can double or even triple truck utilisation, only stopping to refuel, receive, and pick up new loads.
Kodiak Robotics targets long-haul trucking autonomy
Against that backdrop, Kodiak Robotics was launched in 2018 with a focus of developing autonomous technology for the long-haul environment that can be integrated into carriers’ fleets.
Kodiak’s autonomous solution, the kodiakDriver, includes a modular hardware system, known as SensorPods, that integrate the majority of sensors needed to “see” its environment using the truck’s traditional mirror-mount points.
The pods’ modular design allows them to be swapped on and off within minutes, which maximises fleet uptime without the need for specially trained technicians to install the devices and recalibrate the sensor network.
Since launching its operations hub just south of Dallas, Texas, in 2019, Kodiak has been focusing on safely developing a system that can handle the demanding long-haul environment.
This year alone, Kodiak has completed multiple pilots with some of the biggest names in freight, including four uninterrupted round trips from Dallas to Atlanta with the kodiakDriver continuously operating.
Vicor power solutions exceed demanding and essential sensor qualifications
Kodiak quickly identified three areas in an AV trucking environment where the power system design needs to be uncompromising: reliability, efficiency, and the ability to perform in-system health monitoring.
These requirements are what drew Kodiak to partner with Vicor Corporation’s custom design subsidiary, Vicor Power Systems (Vicor). This group designs high-density, high-performance power systems, utilising Vicor’s power modules, which are ideal for autonomous vehicle systems.

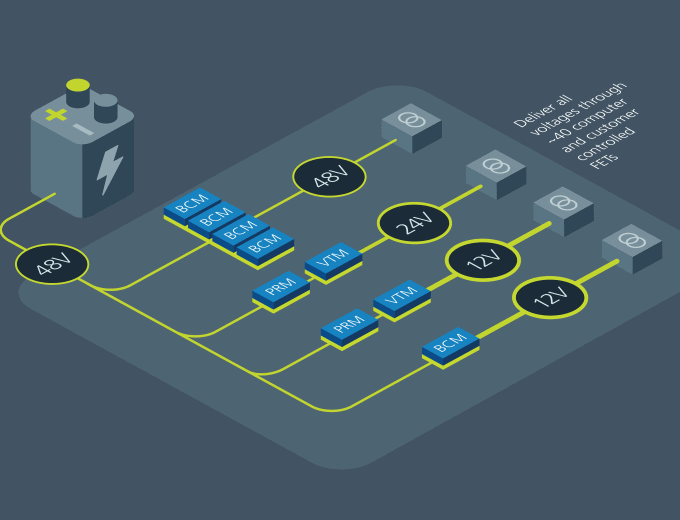

The Kodiak power system utilises several Vicor power modules to support their sensor needs that require 12, 24, and 48V power supply buses. These include the Vicor NBM6123, BCM6123, PRMs and VTMs. All of the power modules deliver reliable, highly efficient power conversion in very small packages.
Vicor also provided design support to enable a controllable output feature to every component in the system and optimising component health by monitoring the voltage and current on all Kodiak sensors.
The Kodiak platform includes four basic buses that must be directed to specific sensors, actuators and processors. Each output is monitored and individually controlled through a proprietary CAN bus.
Vicor additionally provides battery charging for a 48V system when the truck is garaged and plugged in. The AC shore power system maintains the battery charge level when the engine is not running, allowing maintenance technicians and engineers to use the vehicle indoors.
By using a Vicor 48-volt system on the truck Kodiak is able to reduce the size of the cabling, saving weight, space and enabling the vehicle for high-power applications.
Radically changing the future for commercial transportation and truckers
Commercial transportation is underappreciated, yet it is indispensable to global economic stability. Today, Kodiak stands ready to revolutionise this industry with autonomous transportation that will enable more reliable and efficient trucking.
Learn more about Kodiak and how power modules are supporting its next-generation technology.
