COSEL extends open frame power supplies range for demanding industrial applications

06 April 2022

Cosel Co, Ltd has added two open frame compact power supplies for demanding industrial applications to its LHA series. Benefiting from the latest power switching technologies, the LHA10F and LHA15F are 15 per cent smaller and offer a leakage current 50 per cent lower than conventional products on the market.

Designed for use in a wide range of applications, the LHA10F and LHA15F are able to operate in a wide temperature range from -10 to +70°C. The power supplies are UL/EN62368-1 certified.

With the increased levels of systems integration, factory automation requires more compact power supplies able to work with the highest levels of safety in a variety of environments. The LHA10F and LHA15F have been designed to provide robust isolation levels and very low leakage currents.

Designed for worldwide applications, the LHA10F and LHA15F have an input voltage range of 85VAC to 264VAC single phase, and conform to the safety standards input voltage range of 100-240VAC (50/60Hz).

The power supplies are available in five output voltages, 3.3V, 5V, 12V, 15V, 24V with respective currents. On both versions, the 3.3V output voltage can be adjusted in the range of 2.85V to 3.63V, all other voltages being factory fixed.

The LHA10F and LHA15F benefit from an optimised switching topology developed for higher power LHA series, and have an efficiency up to 84.5 per cent at 230VAC and rated load.

The power supplies include inrush current limitation, over-current protection with automatic recovery when the default is removed, and over-voltage protection.

The units are designed to operate from -10 to +70°C and they can be mounted in any orientation, though depending on the ambient temperature and environment, a derating may apply.

In conducted noise tests, the LHA10F and LHA15F comply with FCC-B, VCCI-B, CISPR11-B, CISPR32-B, EN55011-B, and EN55032-B.

The units have a 3,000VAC input to output isolation voltage, 2,000VAC input to ground and 500VAC output to ground. They offer low leakage currents, the LHA10F has 150µA max and the LHA15F has 100µA max at 240VAC/60Hz.

Designed for use in demanding applications where space is often limited, the LHA10F measures just 50 X 21.5 X 62.5mm (1.97 X 0.85 X 2.46 inches) and weighs 45g max. The LHA15F measures 50 X 21.5 X 73.5mm (1.97 X 0.85 X 2.89 inches) and weighs 60g max.

Additional options are available for specific applications, option -C for a conformal coating for improved moisture resistance, option-J4 for input and output EP connectors, option -S with chassis, option -SN with chassis and cover, and option -Y for an output voltage potentiometer.

The LHA10F and LHA15F complement the Cosel’s extensive range of products for high demanding industrial applications requiring efficient power from 10W all the way up to 300W. The power supplies offer an ideal solution for the maintenance of equipment using the previous COSEL LDA series.

The LHA10F and LHA15F are suitable for a wide range of applications including measurement and analysis equipment, machine tools and industrial robots, display equipment, and semiconductor manufacturing equipment. They comply with the RoHS and Low Voltage directives and carry the CE mark and UKCA.

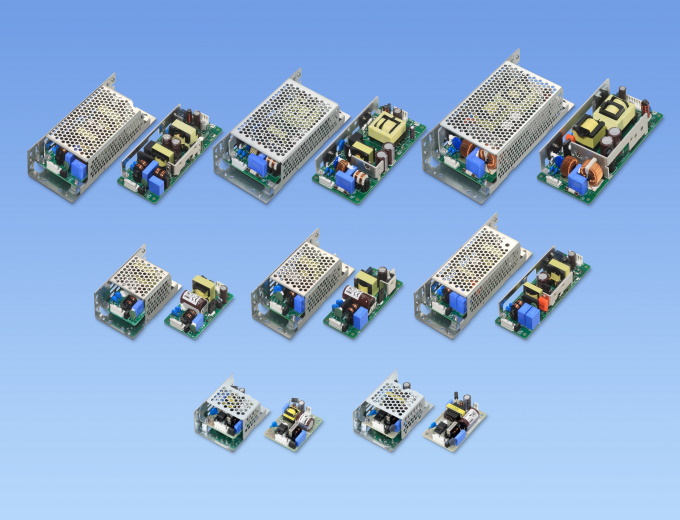

Embracing eight models, the Cosel’s LHA series offers a wide range of products from 10W to 300W for demanding applications

More information available here.
